Brand Name : Ruijia
Certification : CE
Place of Origin : China
MOQ : 1pc
Price : USD 70.9~212.5 /piece
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability : 2000 Piece/Pieces per Month
Delivery Time : Within 2Weeks
Packaging Details : Standard export packaging
Output : Analog SENSOR
Type : Load Cell
Description : load cell
Theory : Resistance Sensor
Rated output : 2.0mV/V
Creep : ±0.05%FS (30min)
Zero Balance : ±1.0%FS
Insulation Resistance : 5000MΩ
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
Specifications
| Specification: | |
| Range (T): 0.5-100 | |
| Comprehensive error (%F.S): ±0.05 | Insulation resistance (MΩ): ≥5000 |
| Rated output (mV/ V): 2.0 | Temp. effect on span (%F.S/10℃): ±0.05 |
| Creep (%F.S/30min): ±0.05 | Temp. effect on zero (%F.S/10℃): ±0.05 |
| Zero balance (%F.S): ±1.0 | Operation temp. range (℃): -20~+65 |
| Input resistance (Ω): 380±10 or 750±15 | Excitation voltage (V): 10 (DC) |
| Output resistance (Ω): 350±3 or 700±5 | Safe overload (%F.S): 150 |
| Wiring information: | Red: Input (+) White: Output (-) Black: Input (-) Green: Output (+) |
Dimension

| Range | Size (mm) | ||||||
| T | φA | φB | φC | φF | MD | H | E |
| 0.5-7 | 105 | 88.9 | 6.5 | 32 | M16x1.5 | 37 | 34 |
| 10-25 | 125 | 101.6 | 8.5 | 39 | M32x1.5 | 52 | 48 |
| 30-50 | 145 | 116.8 | 10.5 | 50 | M40x1.5 | 58 | 54 |
| 60-100 | 205 | 162 | 12.5 | 80 | M60x2 | 85 | 78 |
| Range (T) | Size(mm) | ||||
| φ | L1 | L | M | SR | |
| 0.5-7 | 31 | 13 | 28 | M16*1.5 | 80 |
| 10-25 | 38 | 24 | 51 | M32*1.5 | 120 |
| 30-50 | 50 | 32 | 62 | M40*1.5 | 200 |
| 60-100 | 80 | 42 | 80 | M60*2 | 280 |
Product Details


Application

Company Information

Q:What are the applications of spoke type load cell?
A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.
Q:What is the raw material?
A: Alloy steel
Q: What is the load range?
A: 1-470T
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: How to install?
A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator
|   |

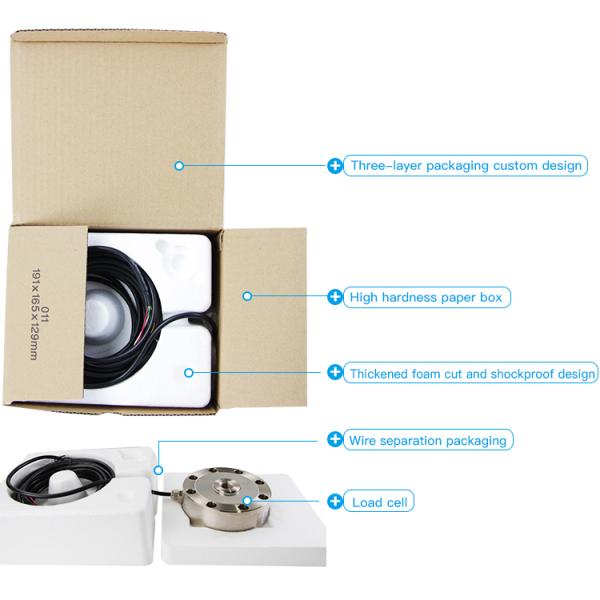

| Alloy Steel Kit Weighing Scale Load Cell for Storage Tank use to belt weigher, hopper scale and other weighing devices Images |
